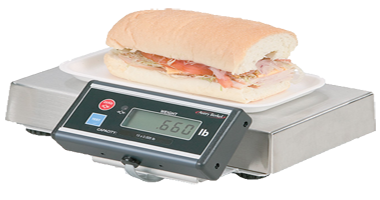

Avery Berkel 6702 Scale

Avery Berkel 6700 Series

Standard point-of-sale interface scale for linking to electronic cash registers or POS systems.

Easy to Read Six-digit LCD external display with large 0.5” characters, tactile keys.

Accurate and Reliable Quality load cell and electronics ensure repeatable weight measurements and troublefree operation.

Easy to Install Bi-directional 9-pin RS232 port.

Interfaces to most electronic cash registers and point-of-sale software programs.

Quick Disconnects Makes all cable connections easy.

Features & Benefits
Auto Zero Tracking Zero light indicator and manual control when out of range.

Interface Protocols NCI, ECR, 8213 (Sharp), 2250 (Swintec), ATT, 0400 (Olympia).

Alternate Calibration Points Allows use of lessthan full capacity weight for calibration.

Construction (6702/6710) Stainless steel weighing area with full skirt around perimeter of base, except where connectors are located at rear of scale. (6720) stainless steel weight platter, die cast aluminum base.

Power Input: 120 VAC (+10% -15%)/ 60 Hz (±3 Hz)

Standard 3 wire with ground input

Output: 15 VDC @ 0.3 Amps minimum

Power cord: 6 foot

Agency Approvals NTEP COC # 95-070, Class III
Canada W&M, COC AM-5076 UL Listed,

CSA certified power supply

View PDF

Avery Berkel 6700 Scale

Options
Display Post (6702/610/6720) 12” high post for attachment to remote display.

Display Brackets (6702/6710) Attach remote display to scale base.

International Power Supply 230 VAC, 50 Hz power supply. Cable terminated with
a universal connector.

Cables Interface cables available for PCs and specific ECRs.

Remote Display (6720) Six-digit LCD housed in an extruded metal enclosure with tactile keys and a 7 ft. cable.
